HG050FH028T02: 4.97-inch MIPI interface, TFT, full view, resolution 1080*1920, is widely used in power handheld TFT capacitive
Product parameter details
| Model | HG050FH028T02 | Application industry | Power handheld |
| Size | 4.97-inch | Arrangement | 1080*1920 |

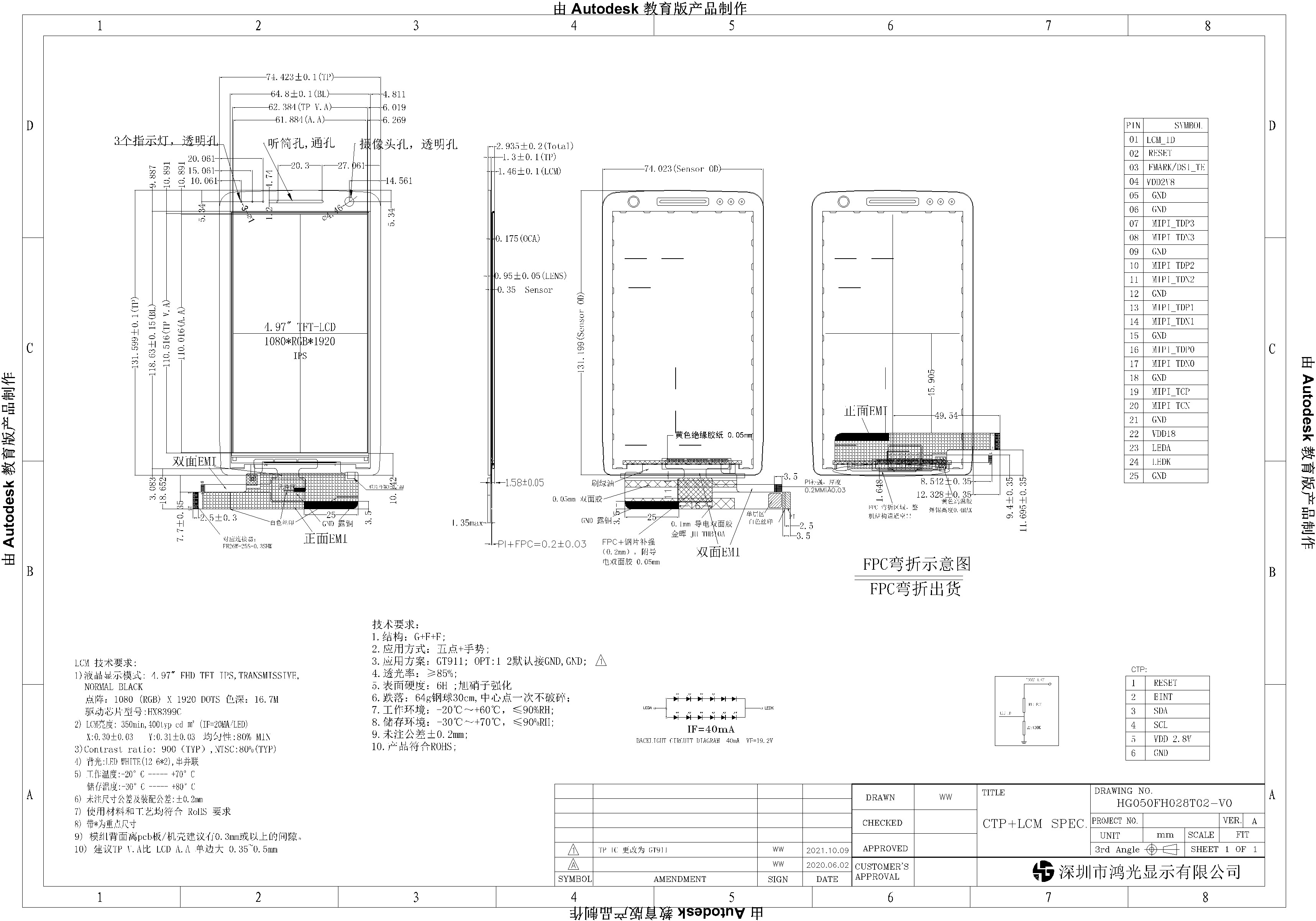

| Display size | 61.884mm*110.016mm | External dimensions | 74.423mm*131.5999mm*2.935mm |
| Viewing Angle | ALL | Luminance | 370cd/m2(customizable) |
| Contrast ratio | 900 | NTSC | 80% |
| Signal types | MIPI interface25PIN |
| Temperature | Operating temperature:-20℃~70℃,storage temperature:-30℃~80℃ |
| TP structure | G+F+F | Cover plate | 0.95mm Asahi glass |
| TP IC | GT911 | TP interface | I²C |
| Remark | Wide temperature products, suitable for hand holding |
Instructions
HG050FH028T02 is a wide temperature capacitive touch display for high-end handheld industry.
The resolution is 1080*1920, and the display effect is IPS.
It is composed of TFT LCD panel, driver IC, FPC, backlight source and CTP.
Using MIPI-4 channel interface 25PIN, can work in -20℃~70℃, storage temperature: -30℃~80℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards;
If you can't find a suitable one, please contact us for a recommendation.
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons.
4. We can also design packaging according to customer requirements.
Transport:
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
Product Tags:
|
|
4.97 inch MIPI Interface TFT Capacitive Touch Screen 1080x1920 Images
|
