HG070WS011 7.0-inch is a standard LCD TFT display with a MIPI interface, TFT, full viewing view, and a resolution of 1024x600
7.0-inch is a standard LCD TFT display with a MIPI interface, TFT, full viewing view, and a resolution of 1024 * 600 for on-board instrumentation
Product parameter details
| Model | HG070WS011 | Application industry | Vehicle equipment |
| Size | 7.0 inch | Arrangement | 1024*600 |
| Display size | 154.21mm*85.92mm | External dimensions | 163.8mm*97mm*2.6mm |
| Viewing Angle | ALL | Luminance | 350cd/m2(customizable) |
| Contrast ratio | 800 | NTSC | 50% |
| Signal types | MIPI Interface 30PIN |
| Temperature | Operating temperature in: -20℃ ~60℃, storage temperature: -30℃ ~70℃ |
| Remark: | The TP can be customized and fully fit |
Description of products
HG070WS011 is a project-line color active matrix LCD
It is composed of TFT LCD panel, driver IC, FPC and backlight
It is a standard series full view LCD TFT display with 1024*600 resolution
Using MIPI-4 channel interface 30PIN, can work in -20℃~60℃, storage temperature: -30℃~70℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation.
.
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons.
4. We can also design packaging according to customer requirements.
Transport:
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
Product Tags:
|
|

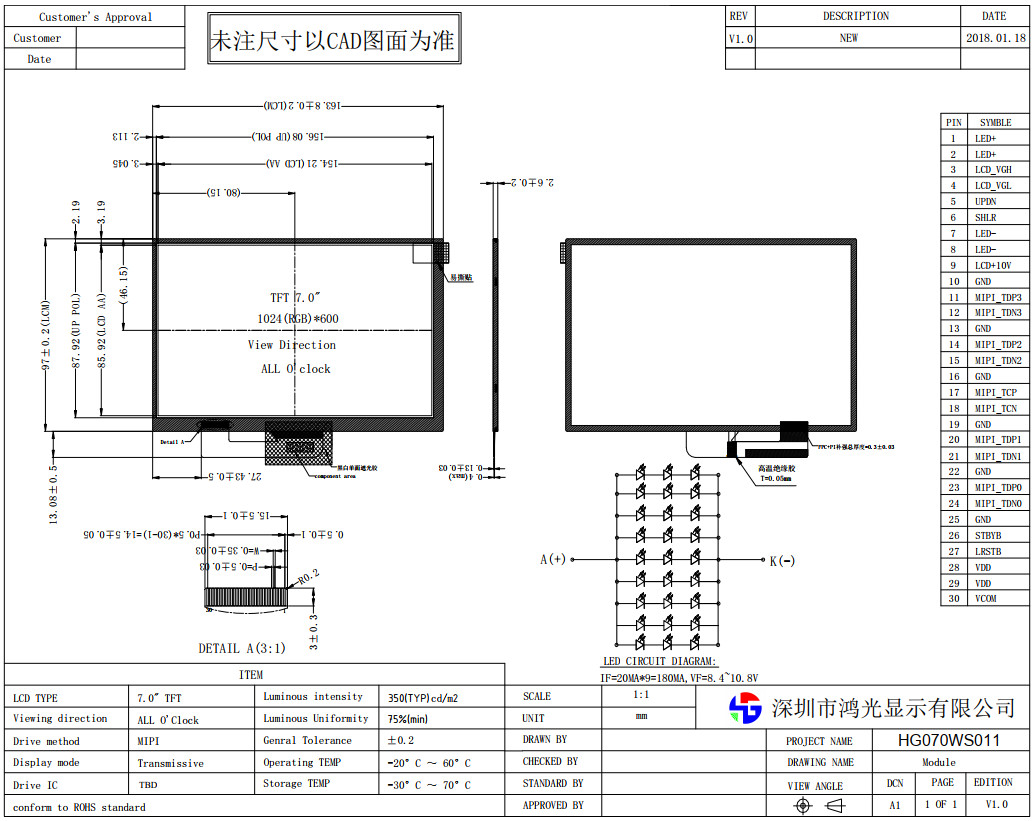

7 inch IPS 1024x600 TFT LCD MIPI Interface Images
|
