HG070WV048 7 inch is LCD TFT display with RGB interface, TFT, TN 12 0 Clock Angle of view, the display effect is super wide Angle of view, resolution is 800*480, suitable for instrument related industries, can realize the sunlight visible.
Product parameter detail
| Model | HG070WV048 | Application industry | Instruments and apparatus |
| Size | 7 inch | Arrangement | |

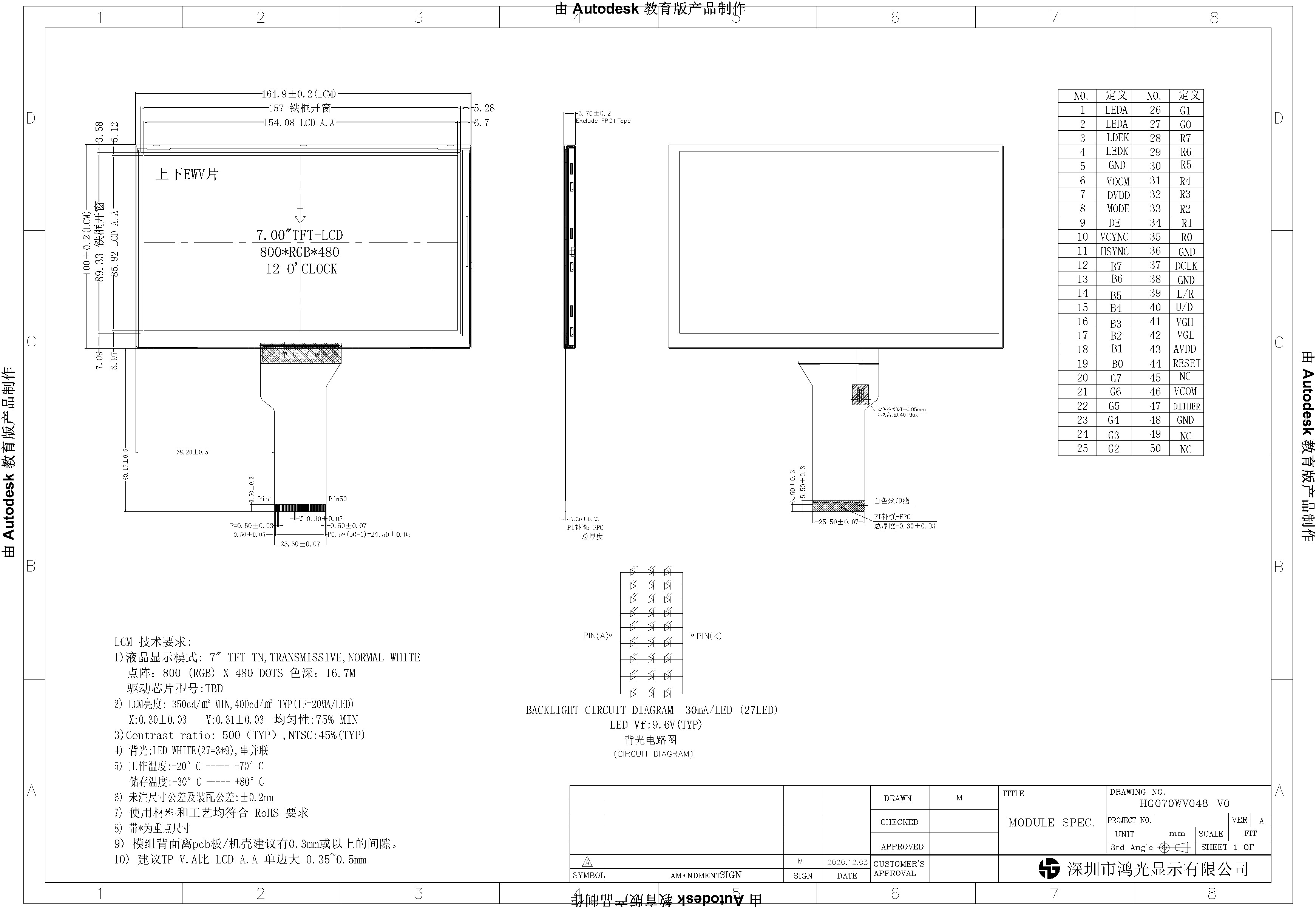

| Display size | 154.08mm*85.92mm | External dimensions | 164.9mm*100mm*5.7mm |
| Viewing Angle | TN 12 0' Clock | Luminance | 400cd/m2(customizable) |
| Contrast ratio | 500 | NTSC | 50% |
| Signal types | RGB-24,50PIN |
| Temperature | Operating temperature in: -20℃ ~70℃, storage temperature: -30℃ ~80℃ |
| Remark | Standard series LCD TFT display, long row of cables |
Product description
HG070WV048 resolution of 800*480, display effect for the super wide Angle of the standardized series of display,
Can realize the sunlight visible;
It is composed of TFT LCD panel, driver IC, FPC and backlight source.
RGB-24 channel interface 50PIN, can work at -20℃~70℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instruments and other related products
All products can be made with or without touch and industrial drive boards, whatever configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards
If you cannot find a suitable one, please contact us for a recommendation.
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons.
4. We can also design packaging according to customer requirements.
Transport:
1. Through express delivery (3-7 working days).
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
