11.6-inch EDP interface, TFT, full Angview, resolution of 1920 * 1080 smart TFT display
Product description
11.6-inch EDP interface, TFT, full Angview, resolution of 1920 * 1080 smart TFT display, used for airport face recognition related products

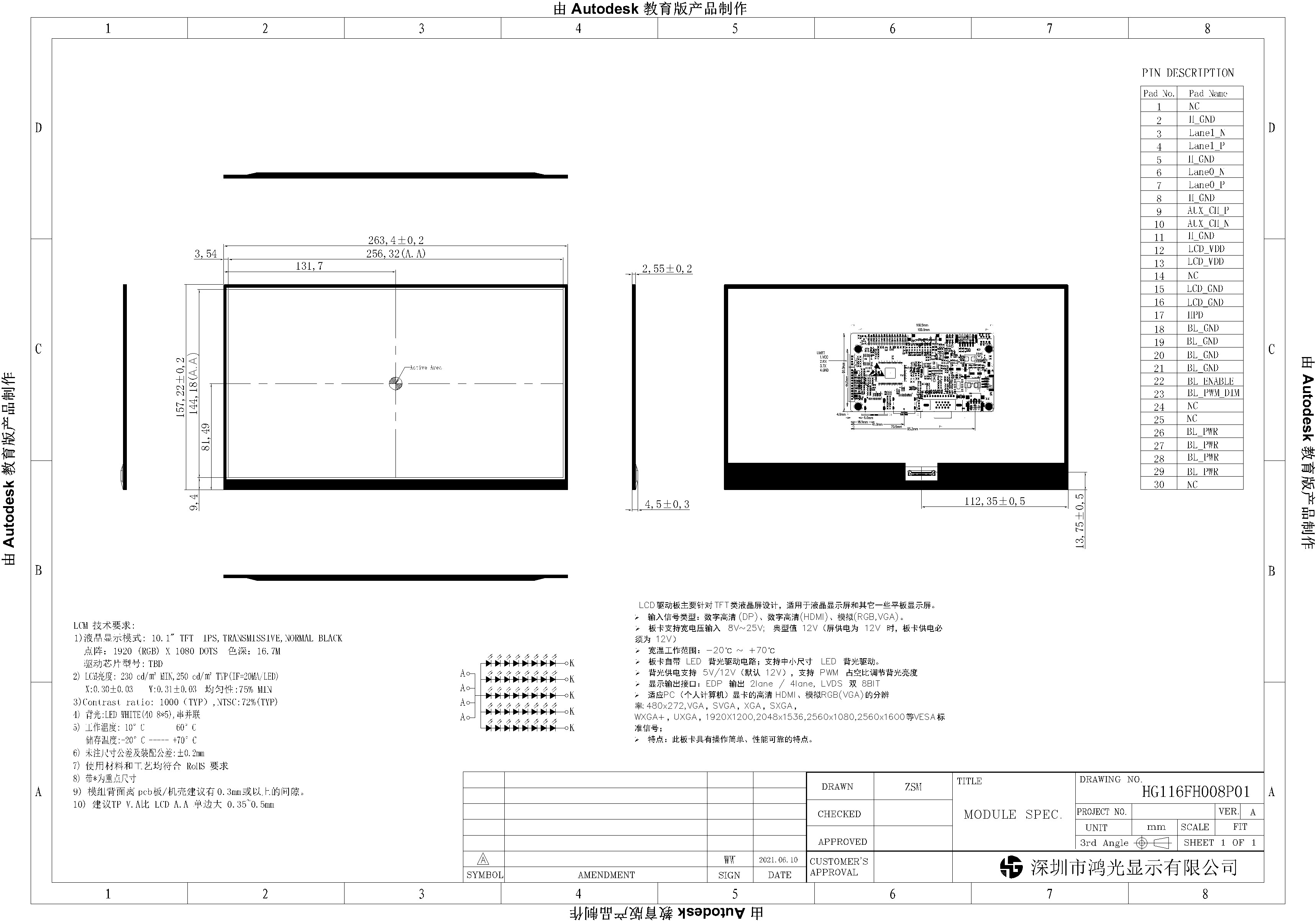

Product parameter details
| Model | HG116FH008P01 | Application industry | face recognition |
| Size | 11.6 | Arrangement | 1920*1080 |
| Display size | 256.32*144.18 | External dimensions | 263.4*157.22*2.55 |
| Viewing Angle | ALL | Luminance | 250cd/m2(customizable) |
| Contrast ratio | 1000 | NTSC | 72% |
| Signal types | EDP interface 30PIN |
| Temperature | Operating temperature: -10℃ ~ + 60℃, storage temperature: -20℃ ~ + 70℃ |
| signal plate | The HDMI signal board, which has passed the medical testing standard |
| Remark: | Applied to airport face recognition |
Description of products
HG116FH008P01 is a screen +HDMI signal board with a resolution of 1920 x 1080,
Display effect is full view;
It is composed of TFT LCD panel, driver IC, FPC, backlight source and HDMI signal board.
It is a 1920*1080 resolution smart TFT touch display;
Using EDP-2 channel interface 30PIN; Can work at -10℃~60℃, storage temperature: -20℃~70℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards;
If you can't find a suitable one, please contact us for a recommendation.
Packing and Shipping
Packing Details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packing according to customer's requirement.
Transport
1. By express delivery (3-7 working days), applicable to emergency time and small amounts.
2. Sea transportation (15-30 days), suitable for conventional
3. Airfreight (4-5 days), from airport to airport.
Product Tags:
|
|
EDP Interface 11.6 Inch Smart TFT Display For Airport Face Recognition Images
|
